The 6 components related with Body Control Module(hereinafter referred to BCM) connect with each other via CAN(Controller Area Network) communication system. These are BCM. Assist Door Module (ADM), Drive Door Module (DDM), Power Seat Unit (PS), tilt/telescope control unit and Personal Identification Card (PIC).
Wiper Motor Module (WMM) and Mulit-Function Switch (M/F) connect with BCM via LIN (Local Interconnect Network). Therefore it is possible to diagnose an overall system with scantool.
*¹ CAN (Cotroller Area Network) : CAN is a serial bus system especially suited for networking "intelligent" devices as well as sensors and actuators within a system or sub-system.
*² LIN (Local Interconnect Network) : LIN is a new low cost serial communication system intended to be used for distributed electronic systems in vehicles, which complements the existing portfolio of automotive multiplex networks.

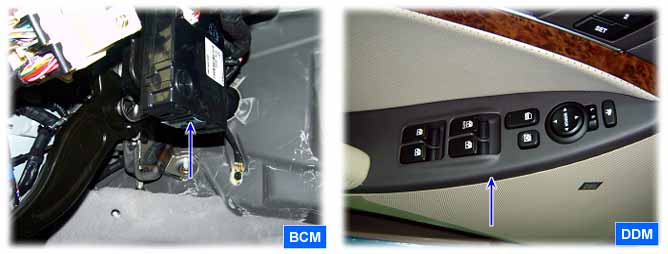

This code means that there is a problem in CAN BUS between BCM and DDM. This code is set if DDM message is not transmitted for more than 10s. Possible cause is disconnected connector and open circuited in CAN HIGH, LOW line.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Check CAN communition state.
? Open circuited in CAN HIGH, LOW line.
? Disconnected connector
Enable Conditions
? Unable to transmit data via CAN line.
Threshold value
? Both CAN High and Low line are open circuited.
Detecting time
? More than 10s.
