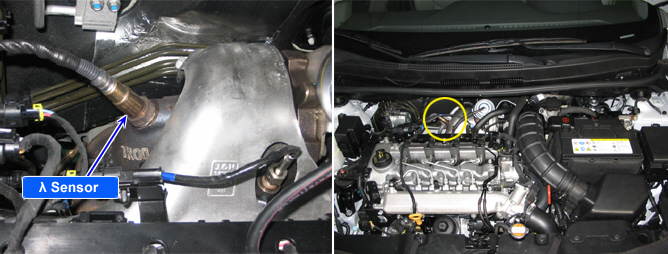

Component Location
General Description
Lambda sensor installed at exhaust manifold is linear Lambda sensor and it senses O2 density of exhaust gas for accurate EGR control through fuel correction. It also limits smoke which is generated by reach air-fuel mixture at engine maximum loading condition. ECM controls pumping current in order to fit ?-value from linear Lambda sensor to 1.0.
Lean air-fuel mixture(1.0<1.1) : ECM supplies pumping current to Lambda sensor (+pumping current) and activates it for Lambda sensor to have the characteristic at ?=1.0 (0.0 pumping current). With the value of pumping current supplied to Lambda sensor, ECM detects O2 density of exhaust gas.
Rich air-fuel mixture(0.9<1.0) : ECM takes away pumping current from Lambda sensor (-pumping current) and deactivates it for Lambda sensor to have the characteristic at ?=1.0 (0.0 pumping current). With the value of pumping current taken away from Lambda sensor, ECM detects O2 density of exhaust gas.
This performance is the most active and fast at normal operating temp.(450°C~600°C) thus, in order to reach normal operating temp. and last at that temp., heater(heating coil) is integrated with Lambda sensor.
Heater coil is controlled by ECM as PWM. the resistance of heater coil is low when coil is cold thus, current through it increases while resistance is high when coil is hot thus, current decreases. With this principle, Lambda sensor temp. is measured and Lambda sensor heater operation varies based on the data.
DTC Description
P2238 is set when 1) short to ground in signal line(terminal 4), ground line(terminal 3), power line(terminal 1), pumping current line(terminal 6) or 2) open in ground line is detected. This code is due to the problem of O2 sensor circuit.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Voltage Monitoring
| Lambda sensor circuit
Lambda sensor component
|
Enable Conditions | Engine running
|
Threshold Value | Short to GND in Lambda sensor circuit
Open in Lambda sensor circuit
Output signal below 0.2V
|
Diagnostic Time | 2.0 sec.
|
Fail Safe | Fuel Cut | NO | |
EGR Off | NO |
Fuel Limit | NO |
Check Lamp | NO |
Specification
? value | 0.65 | 0.7 | 0.8 | 0.9 | 1.01 | 1.18 | 1.43 | 1.7 | 2.42 | Air |
Pumping current | -2.22 | -1.82 | -1.11 | -0.5 | 0 | 0.33 | 0.67 | 0.94 | 1.38 | 2.54 |
Diagnostic Circuit Diagram
Signal Waveform
Fig.1) CH-A is waveform of Lambda sensor power at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically.
CH-B is Waveform of Lambda sensor ground at IG KEY "ON" and Engine running. 2.5V is displayed.
Fig.2) CH-A is Waveform of Lambda sensor signal at IG KEY "ON" and Engine running. 2.5V is displayed.
CH-B is Waveform of Lambda sensor pump at IG KEY "ON" and Engine running. 2.5V is displayed.
