1. ETC Motor & TPS

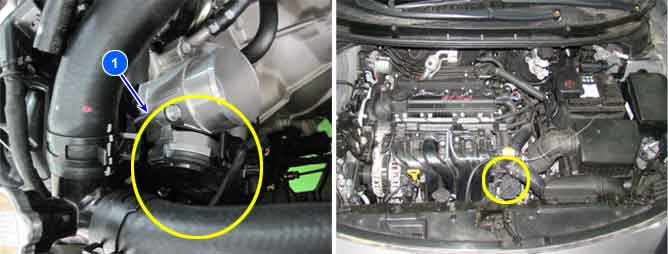

The Electronic Throttle Control(ETC) system is made of the components throttle body, Throttle Position Sensor(TPS)1&2 and Accelerator Position Sensor(APS) 1&2. The throttle body contains the actuator, the throttle plate and the throttle position sensor (potentiometer), which are integrated in one housing. The actuator consists of a DC motor with a two-stage gear. The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body. And it provides feedback to the ECM to control the throttle motor in order to control the throttle valve opening angle properly in response to the driving condition.
ECM sets DTC P2101 if ECM detects open or short to ground in ETC motor control circuit.
Item
Detecting Condition
Possible Cause
DTC Strategy
Power Stage Check
Throttle stuck
Open in motor circuit
Faulty motor
Faulty ECM
Enable Conditions
Battery voltage > 8V
Threshold Value
Short circuit
Overheatingor overcurrent
SPI bus or signal fault
Open load
Diagnostic Time
-
MIL ON Condition
5 sec
This is a ETC motor signal waveform with acceleration.
ECM controls ETC motor(DC motor) to operate the throttle valve.
ETC motor operate and change the throttle valve position in order to open the closed throttle valve under the acceleration condition.
