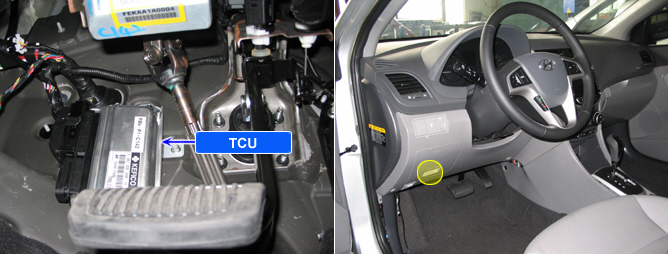

Component Location
General Description
ECM and TCM give and take various data through CAN communication each other. When the problem of TCM related sensor(input speed sensor, output speed sensor, inhibiter switch, etc.) and actuators(transaxle solenoid valve, etc.) occurs, gear is fixed at 3rd gear position. However, alam device which notifies drivers of the occurrence of TCM related problem directly like "TCM warning lamp". Instead of TCM lamp, including TCM, if power train related problem happens, Engine check lamp turns ON to let drivers recognize the occurrence of power train system(A/T system) related problem.
DTC Description
P0700 is the code which notifies drivers of the occurrence of TCM related problem indirectly as illuminating engine check lamp. If this code is recorded, Do not check engine but auto transaxle.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Signal monitoring
| Problem of TCM system
|
Enable Conditions | Engine "ON"
|
Threshold Value | Engine check lamp ON requirement from TCM
|
Diagnostic Time | 500ms
|
Fail Safe | Fuel Cut | NO | |
EGR Off | NO |
Fuel Limit | NO |
Check Lamp | NO |
