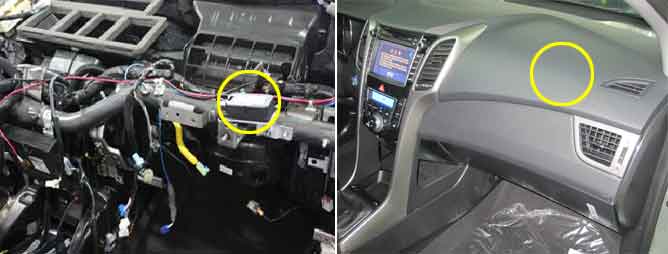

Component Location
General Description
Auto Learning
AL(Auto Learning) starts every time, the vehicle was parked long enough to change or permute wheels(19min), and i straveling again at a speed that ensures that the WE sensors are transmitting. AL is automatically considering all WE identifiers received and extracts, based on statistical evaluation, IDs belonging to the WEs mounted on the vehicle. If new IDs are detected their recurrence will be tracked by AL. When AL is in progress, tire pressure monitoring is running in parallel with the old set of identifiers known from the last run of AL.
DTC Description
This DTC indicates that A failure of Auto-learning happens when less than WE sensors were learned.
DTC Detecting Condition
Item | Detecting Condition | Possible cause |
DTC strategy | Check pulse
| Faulty WE sensor Interference by an external cause |
Enable conditions | On start of driving after parking for more than 19min.
|
Threshold value | Auto learning failed and at least one WE sensor is missing.
|
Mil On condition | Active DTC is set
|
