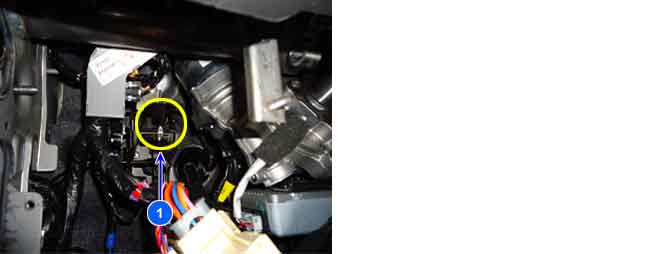

1. Clutch Switch
The clutch switch is used for the Hill start Assist Control function.
If the wrong clutch signal is continued for a certain period of time, a failure is recognized.
Item
Detecting Condition
Possible cause
DTC Strategy
Clutch signal monitoring
Open or short clutch switch
Faulty clutch switch
Monitoring Period
Continuous
Enable Conditions
The fault is detected if with high vehicle speed (>60km/h) the clutch signal has been set continuously
Fail-Safe
Inhibit the HAC control and allow the ABS/EBD/ESP control
The ESP warning lamp is activated
