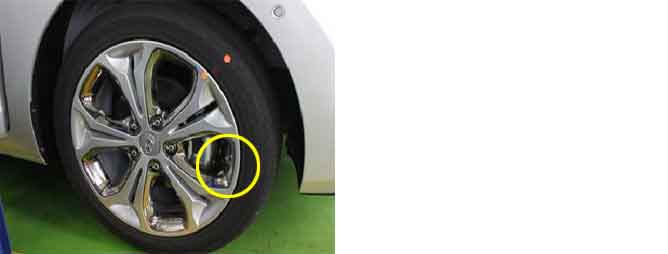

Component Location
General Description
The TPMS is the acronym for Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver), Initiators and TPMS sensors. Among components of TPMS system, the TPMS sensor is installed at each wheel rim. and its role is to measure the air pressure and the temperature of the tire and then it transmits its signals to TPMS ECU. The communication from TPMS sensors is done via RF(Radio Frequency) at a frequency.
DTC Description
The TPMS ECU monitors the RF signal of the sensor and if it is not received, this DTC is set.
DTC Detecting Condition
Item | Detecting Condition | Possible cause |
DTC strategy | Monitoring RF signals
| Incorrectly installed initiator or TPMS sensor Faulty WE sensor Faulty TPMS Receiver |
Enable conditions | Vehicle speed > 20Km/h
|
Threshold value | After driving, there aren't any signals from the sensor for more than 540 seconds.
|
