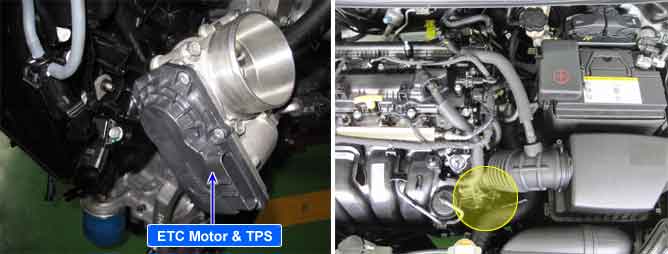

Component Location
General Description
If a malfunction occurs in the Electronic Throttle Control(ETC) system, the PCM will control the engine from predetermined data stored in its memory or stop the engine if a safety problem is anticipated, as an Emergency Operation(Limp-Home)mode. The purpose of Limp-Home mode is to control the engine as close as possible to normal engine operation if a malfunction occurs. When the DTC related to ETC system is recorded by the PCM, then this DTC will be set. This DTC only indicates malfunction related to ETC system has occurred and engine is in Limp-Home mode. DO ALL REPAIRS associated malfunction with ETC system.
DTC Description
PCM sets DTC P2105 to indicate ETC system malfunction has occurred and engine is in Limp-Home mode. The PCM shuts down the engine after setting the DTC, as an Emergency Operation(Limp-Home)mode.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | Engine is in Limp-Home mode
| ETC system malfunction(P0605) |
Enable Conditions | The PCM detects ETC system malfunction.
|
Threshold Value | -
|
Diagnostic Time | -
|
