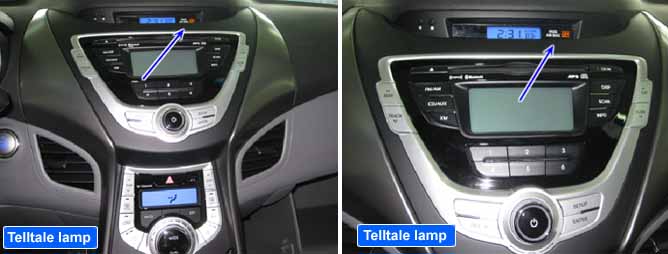

The SRS Telltale Lamp is located on the center of crash pad consists with the Digital Clock.
When the passenger sest are unoccupied, the Telltale Lamp lights up for the notice, and if passenger are occupied under seat,Telltale Lamp are goes off automatically.
DTC B250200 is recorded when occurrence of a malfunction in the Telltale indicator Lamp system.
Item
Detecting Condition
Possible cause
DTC Strategy
Passenger Telltale Lamp failure Ground short or Battery short
Burnt-out fuse.
Burnt-out Telltale lamp.
Open circuit in Telltale lamp harness.
Short circuit in Telltale lamp harness.
Faulty SRSCM.
Enable conditions
Ignition "ON"
Threshold Value
TellTale Lamp leakage to ground
TellTale Lamp leakage to battery
Diagnostic
Time
Qualification
More than 1s (100msx10)
De-Qualification
More than 2s (100ms x 20)
