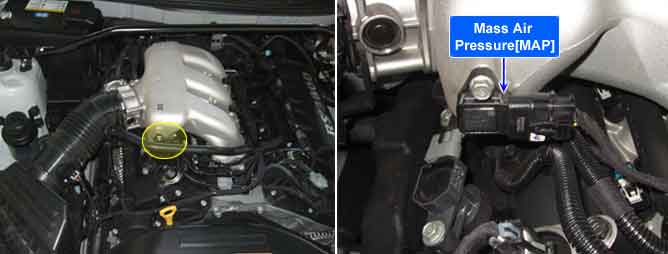

Component Location
General Description
The amount of intake air flow must be inputted to ECM in order to determine the fuel injection quantity. To measure the pressure inside of intake manifold, MAFS is used at idle and MAPS is required at accelerating. MAPS(Manifold Absolute Pressure) calculates the amount of air indirectly as measuring the pressure inside of intake manifold. This mechanism is alsl called Speed-Density Type.
MAPS transfers analog output signal which is proportional to the change of intake manifold pressure, then, with this signal and RPM, ECM calculates the amount of intake air flow.
MAPS is mounted on surge tank to measure the pressure inside of intake manifold, and it consists of a piezo electric element and hybrid IC which amplifies output signal from the element. A piezo electric element is a sort of a diaphragm using piezo electric effect. One side of the diaphragm is surrounded with vacuum chamber while intake pressure is applied to the other side. Thus, signals are output by the transformation of diagphragm according to the change of pressure inside of intake manifold.
DTC Description
Checking output signals of MAPS every 5 sec. under detecting condition, if an output signal is above 4.5V for more than 2.5 sec., ECM sets P0108. MIL(Malfunction Indicatin Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.
DTC Detecting Condition
Item | Detecting Condition | Possible Cause |
DTC Strategy | This code detects a continuous short to high in either the signal circuit or the MAP sensor
| Connecting Condition
Short in Signal Circuit
Open in Ground Circuit
Faulty MAPS
Faulty ECM
|
Enable Conditions | Case 1 | No TPS Active Fault Present
Engine Running Time > 10sec
Engine Speed = 2500rpm
Throttle Position = 30%
|
Case 2 | No TPS Active Fault Present
Engine Running Time > 10sec
Engine Speed > 2500rpm
Throttle Position = 40%
|
Threshold value | MAP Signal > 4.5V
|
Diagnosis Time | Contineous (More than 2.5 seconds failure for every 5 seconds test )
|
MIL On Condition | 2 Driving Cycles
|
Specification
Pressure(kPa) | Voltage(V) |
20 | 0.79 |
46.66 | 1.84 |
101.32 | 4.0 |
Diagnostic Circuit Diagram
Signal Waveform & Data
Fig.1) Normal waveform of MAPS & TPS with acceleration.
Fig.2) Normal data of MAPS at idle.
It is necessary that MAPS should be checked along with TPS. Because the MAP/TPS rationality diagnostic is comprised of two tests. A deceleration test is performed to provide a robust method for detection of an altitude compensated MAP value that is too high for the deceleration condition. The second test compares the altitude compensated MAP value to both high and low limits, dependent upon throttle position and engine speed. When the MAP value is out of the threshold range, the MAP/TPS system is determined to be failed.
