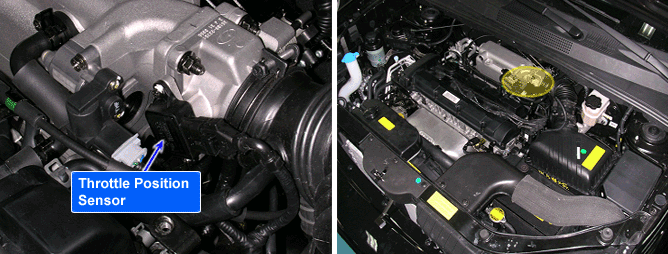

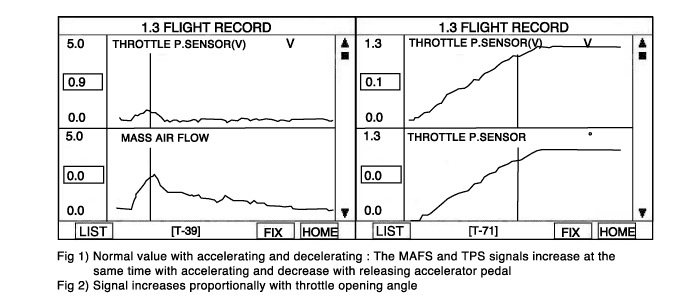

The Throttle Position Sensor (TPS) is mounted on the throttle body and detects the opening angle of the throttle plate. The TPS has a variable resistor (potentiometer) whose characteristic is the resistance changing according to the throttle angle. During acceleration, the TPS resistance between the reference 5V and the signal terminal decreases and output voltage increases; during deceleration, the TPS resistance increases and TPS output voltage decreases. The PCM supplies a reference 5V to the TPS and the output voltage increases directly with the opening of the throttle valve. The TPS output voltage will vary from 0.2~0.8V at closed throttle to 4.3~4.8V at wide-open throttle.The PCM determines operating conditions such as idle (closed throttle), part load, acceleration/deceleration, and wide-open throttle from the TPS. Also The PCM uses the Mass Air Flow Sensor (MAFS) signal along with the TPS signal to adjust fuel injection duration and ignition timing.

The PCM compares the actual measured Mass Air Flow signal with the modeled Mass Air Flow value to detect implausible TPS signal. Because throttle position is one of key parameters in determining the modeled MAF. The modeled Mass Air Flow value is determined by engine speed, throttle angle and ISCA duty. The DTC P0121 is set when the difference between these two value is too high or too low with lambda deviation in same direction for a certain time.
