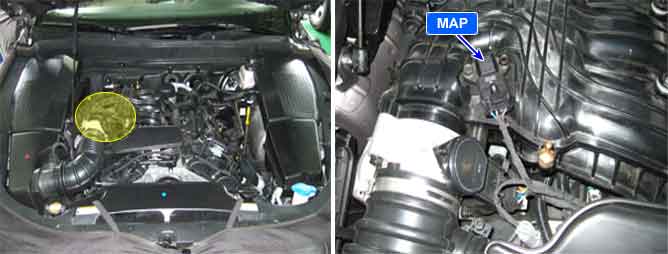

The amount of intake air flow must be inputted to ECM in order to determine the fuel injection quantity. To measure the pressure inside of intake manifold, MAFS is used at idle and MAPS is required at accelerating. MAPS(Manifold Absolute Pressure) calculates the amount of air indirectly as measuring the pressure inside of intake manifold. This mechanism is alsl called Speed-Density Type.MAPS transfers analog output signal which is proportional to the change of intake manifold pressure, then, with this signal and RPM, ECM calculates the amount of intake air flow. MAPS is mounted on surge tank to measure the pressure inside of intake manifold, and it consists of a piezo electric element and hybrid IC which amplifies output signal from the element. A piezo electric element is a sort of a diaphragm using piezo electric effect. One side of the diaphragm is surrounded with vacuum chamber while intake pressure is applied to the other side. Thus, signals are output by the transformation of diagphragm according to the change of pressure inside of intake manifold.
Checking output signals of MAPS under detecting condition, if an output signal is intermittently above 4.5V ., ECM sets P1106.
Item
Detecting Condition
Possible cause
DTC Strategy
Monitor the signal of MAP sensor
Poor Connecting
Short to battery in signal circuit
Open in ground circuit
Faulty MAPS
Faulty ECM
Enable
Conditions
Case 1
No TPS Active Fault Present
Engine Running Time > 10sec.
Engine Speed = 2500rpm
Throttle Position = 30%
Case 2
Engine Speed > 2500rpm
Throttle Position = 40%
Threshold value
Intermittently MAP Signal > 4.5V
Diagnosis Time
Contineous (More than 2sec. failure for every 4 sec. test)
MIL On Condition
DTC only(NO MIL ON)
Pressure(kPa)
Voltage(V)
20
0.79
46.66
1.84
101.32
4.0
Fig 1) Normal waveform of MAPS & TPS with acceleration.
Fig 2) Normal data of MAPS at idle.
