P1500 Vehicle Speed Sensor Signal Circuit Malfunction
AutoHex Online Help: Hyundai TERRACAN(HP) 2005
TROUBLESHOOTING FOR DTC
DTC | P1500 | Vehicle Speed Sensor (VSS) Circuit Malfunction |
CC-CODE | 06 | Abnormal signal after running |
06 | Abnormal signal after running |
06 | Abnormal signal after running |
07 | No signal before running |
The function of vehicle speed sensor (VSS) is to sense the tooth signal in T/M housing (4 pulses signal for every revolution of the rotor shaft) and send relevant signal to the Engine control module(ECM). The signal is used for computing the vehicle speed and the speed display on the tachometer as well.
DTC DETECTING CONDITIONCC-CODE | Detecting Condition | Suspect Area |
06 | Open or short in VSS circuit VSS fault
| Open or short in VSS cirucit VSS ECM
|
07 |

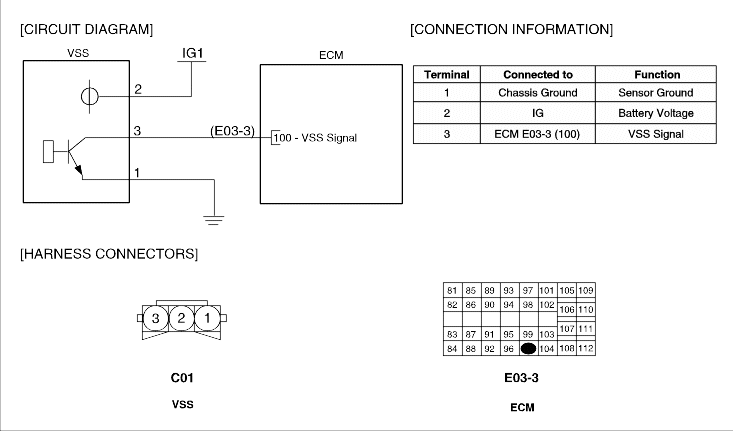

[SCHEMATIC DIAGRAM]

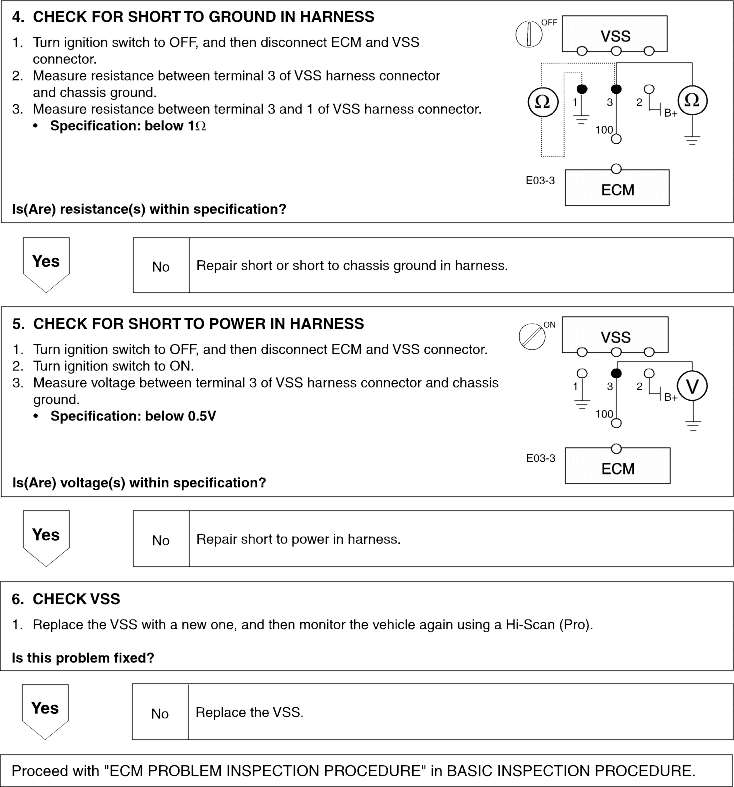

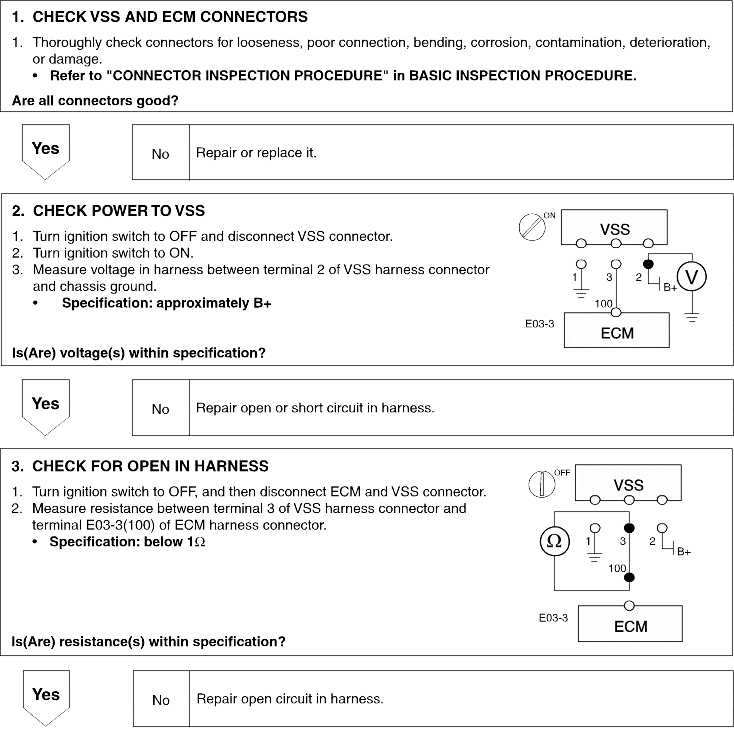

INSPECTION PROCEDURE
