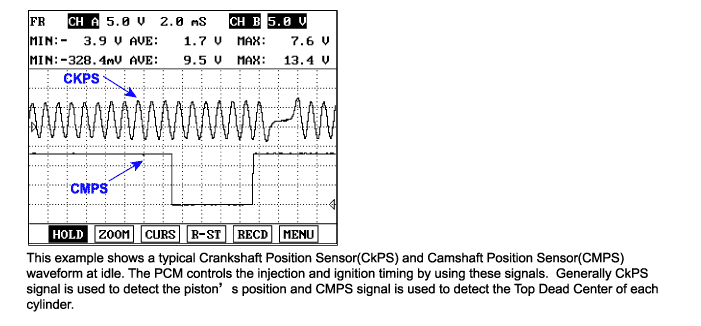

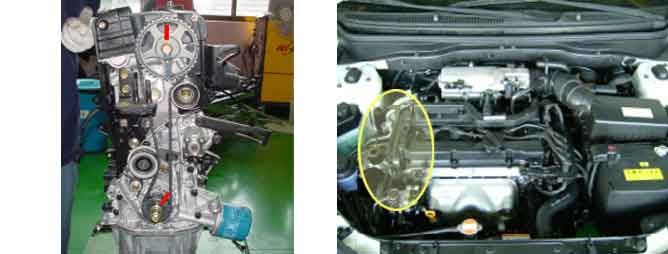

A Crankshaft Position Sensor (CKPS) is a magnetic type sensor that generates voltage using a sensor and a target wheel mounted on the crankshaft. The PCM calculates engine RPM by using the sensor’ s signal and controls the injection duration and the ignition timing.
Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and detects the piston position of the each cylinder which the CKPS can’t detect. This CMPS signal is sent to the PCM and it uses CMPS signals for determining the ignition timing with CKPS signals. CMPS makes Sequential Injection possible.
If the deviation between CKPS and CMPS is bigger than the threshold value, PCM sets DTC P0016.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Camshaft and crankshaft alignment check
? Poor connection
? Contamination of Oil / Clog of Oil path
? CKPS, CMPS
? OCV
? CVVT
? PCM
Case1
Enable Conditions
? Adaptation of alignment between camshaft and crankshaft finished
Threshold Value
? Deviation of the camshaft position from the set point >13 Deg
Diagnostic Time
? 2 sec
Case2
? Difference of the adapted and actual value > 9 Deg
? 2.6 sec
MIL ON Condition
? 2 driving cycle
