The amount of intake air flow must be inputted to PCM in order to determine the fuel injection quantity. MAPS(Manifold Absolute Pressure) calculates the amount of air indirectly as measuring the pressure inside of intake manifold. This mechanism is alsl called Speed-Density Type.
MAPS transfers analog output signal which is proportional to the change of intake manifold pressure, then, with this signal and RPM, PCM calculates the amount of intake air flow.

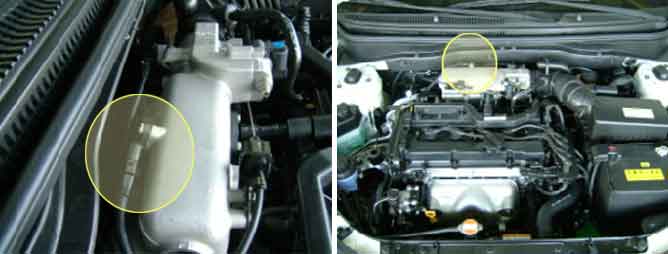

MAPS is mounted on surge tank to measure the pressure inside of intake manifold, and it consists of a piezo electric element and hybrid IC which amplifies output signal from the element. A piezo electric element is a sort of a diaphragm using piezo electric effect. One side of the diaphragm is surrounded with vacuum chamber while intake pressure is applied to the other side. Thus, signals are output by the transformation of diagphragm according to the change of pressure inside of intake manifold.

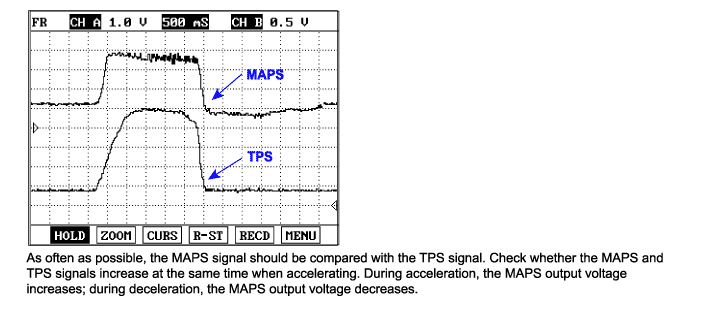

If sensor signal input is lower than 0.25V during 5 sec, PCM sets DTC P0107.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Signal check, low
? Poor connection
? Open or short to ground in power circuit
? Short to ground in signal circuit
? MAPS
? ECM
Enable Conditions
? 5sec after engine start
Threshold Value
? Sensor voltage < 0.25 V
Diagnostic Time
? 5 sec
MIL ON Condition
? 2 driving cycle
Pressure[kPa]
20
35
60
95
107
Voltage [V]
0.789 ± 0.045
1.382 ± 0.045
2.369 ± 0.045
3.75 ± 0.045
4.224 ± 0.045
Acceptable temperature range : ( 23 ±5 )?
