P0743 Torque Converter Clutch Circuit Electrical

AutoHex Online Help: Hyundai i30(FDe) 2012

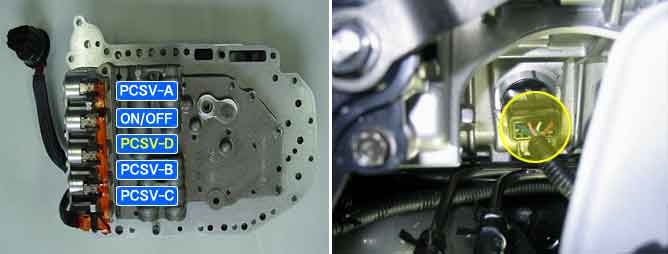

Component Location
General Description

The PCM/TCM controls the locking and unlocking of the Torque Converter Clutch ( or Damper Clutch ), to the input shaft of the transmission, by appling hydraulic pressure. The main purpose of T/C clutch control is to save fuel by decreasing the hydraulic load inside the T/C. The PCM/PCM/TCM outputs duty pulses to control the Damper Clutch Control Solenoid Valve( TCCSV ) and hydraulic pressure is applied to the DC according to the TCC duty ratio value. When the duty ratio is high, high pressure is applied and the Damper Clutch is locked. The normal operating range of the Damper Clutch Control duty ratio value is from 30%(unlocked) to 85%(locked).



DTC Description

The PCM/TCM checks the Damper Clutch Control Signal by monitoring the feedback signal from the solenoid valve drive circuit. If an unexpected signal is monitored (for example, high voltage is detected when low voltage is expected, or low voltage is detected when high voltage is expected) the PCM/TCM judges that TCCSV circuit is malfunctioning and sets this code.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

Case 1

DTC Strategy

Electrical Check

? TORQUE CONVERTER(DAMPER) CLUTCH : TCC

Open or short in circuit

Faulty TCC SOLENOID VALVE

Faulty PCM/TCM

Enable Conditions

PWM DUTY > 25%

Threshold Value

Comparision solenoid operation time with Feed back signal.(Solenoid ON and Short circuit)

Case 2

Enable Conditions

-

Threshold Value

Comparision solenoid operation time with Feed back signal.(Solenoid OFF and Short circuit)

Diagnostic Time

More than 0.3sec

Fail Safe

Locked in 3 rd gear.

Specification

Solenoid Valve for Pressure Control

Sensor type : Normal open 3-way

Operating temperature : -30?~130?

Frequency :PCSV-A,B,C,D :50Hz (at the ATF temp. -20? above)

VFS : 400~1000

? KM series : 35Hz

Internal resistance : 3.5 ± 0.2 O(20?)

Surge voltage : 56 V

Diagnostic Circuit Diagram
Signal Waveform

Fig 1) Signal waveform at 46% duty
