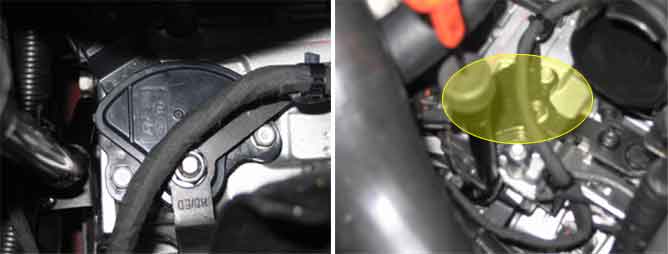

The Transaxle Range Switch sends the shift lever position information to the TCM(PCM) using a 12V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Tansaxle Range Switch is 12V and in all other positions the voltage is 0V. The TCM(PCM) judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.
The TCM(PCM) sets this code when the Transaxle Range Switch has no output signal for more than 30 seconds.
Item
Detecting Condition
Possible Cause
DTC Strategy
Electrical Check
Open or short in circuit
Faulty Shift cable adjustment
Faulty Inhibitor switch and Manual control lever position adjustment
Faulty TRANSAXLE RANGE SWITCH
Faulty TCM(PCM)
Enable Conditions
Engine Speed >1200rpm
Ignition key input voltage = 10V
Threshold Value
No signal detected
Diagnostic Time
More than 30sec
Fail Safe
Recognition as previous signal
- When P-D or R-D or D-R SHIFT is detected, it is regarded as N-D or N-R though "N" signal is not detected.
- When sports mode S/W is ON without P,R,N, D-RANGE signals, it is regarded sports mode.(DTC is not set)
