P0320 Engine Speed Input-Malfunction
AutoHex Online Help: Hyundai H-1(A1) 2009

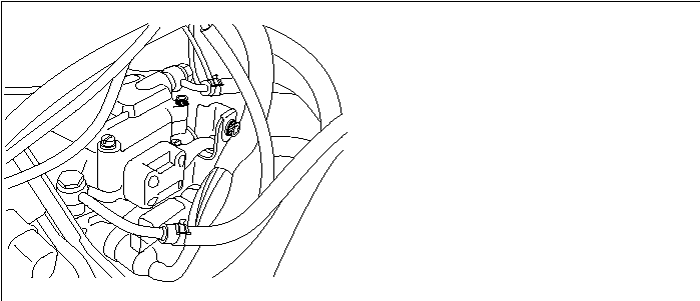

NP SENSOR
DTC | P0320 | Engine Speed input Malfunction |
DTC DETECTING CONDITIONDTC No | Detecting Condition & Limp Home | Possible Cause |
P0320 | Detecting Condition When there are less than 40 pulses for 10 rev. of crankshaft with normal TDC sensor and more than 400rpm Limp Home Use TDC sensor data | Np/TDC output error Sensor coil short/open Noise Wire short/open Harness connection Senssor clearance
|

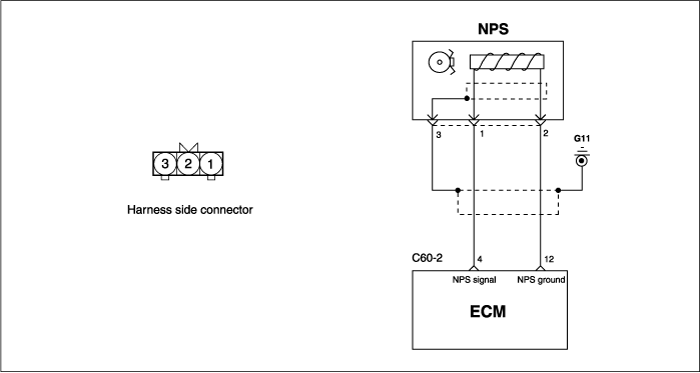

SCHEMATIC DIAGRAM

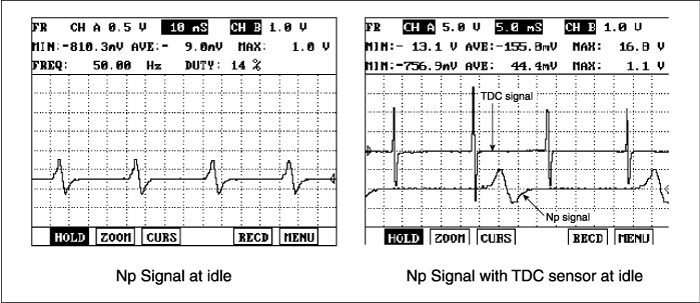

SIGNAL WAVEFORM

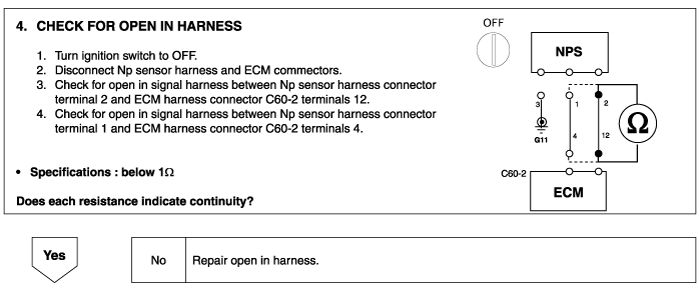

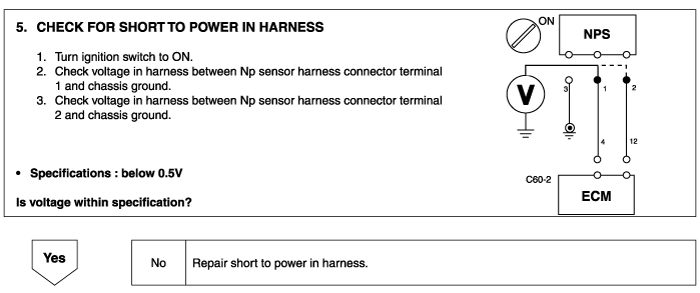

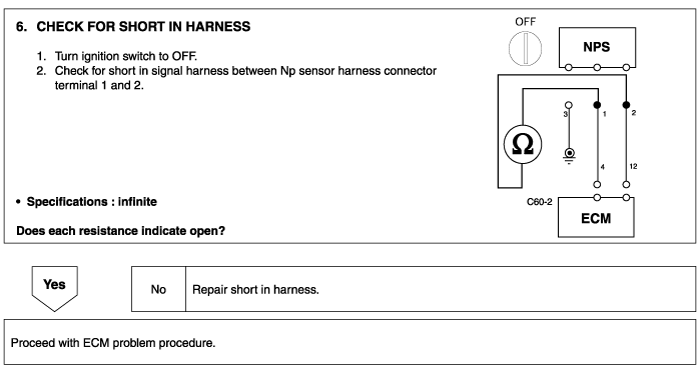

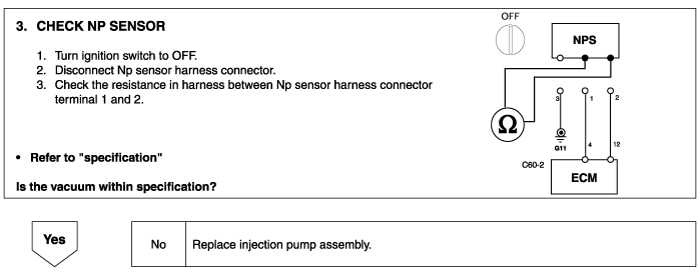

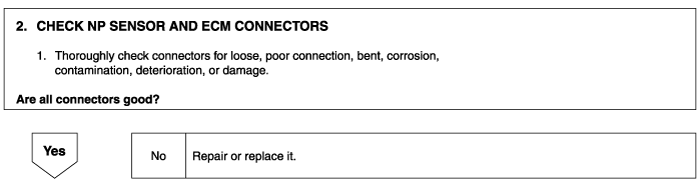

INSPECTION PROCEDURES
