There are two transformer for injector operation in side of ECM. 1 pilot and 1 main injection are operated by ECM in EURO 3 diesel engine therefore one transformer device is sufficient to control injector however, 2 pilot and if CPF is applied, 2 post injection are performed additionally by ECM in EURO 4 diesel engine thus, two transformer is required.
P062D is set when the problem of transforming system 1 for injector contol occurs. This code is due to the failure of transforming system inside of ECM.
?If battery voltage is low, this code can be set. Therefore, beforehand, check DTC code relevant to battery voltage and charging system.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Voltage monitoring (bank 1 error)
? injector circuit
? ECM internal error
Enable Conditions
? Engine running
Threshold Value
? Power stage error for injector voltage control, CPU circuit failure
? Disable to distingish which cylinder is failed by resulting of multiple of random injectors failure.
Diagnostic Time
? Immediately
Fail Safe
Fuel Cut
YES
EGR Off
NO
Fuel Limit
Check Lamp

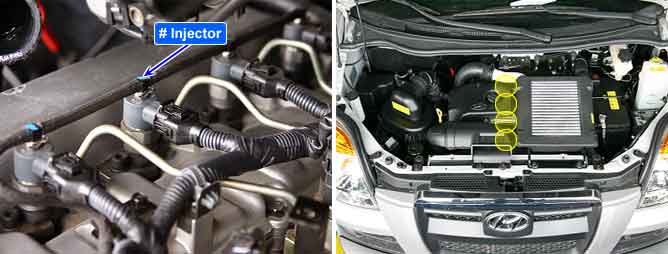

Injector Component Resistance

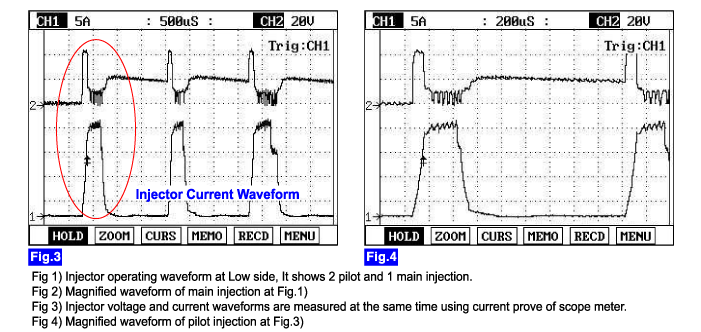

Injector Operating Voltage
Injector Operating Current
Injector Control Type
0.215? ~ 0.295? ( 20?~70? )
80V
20A
Current control
