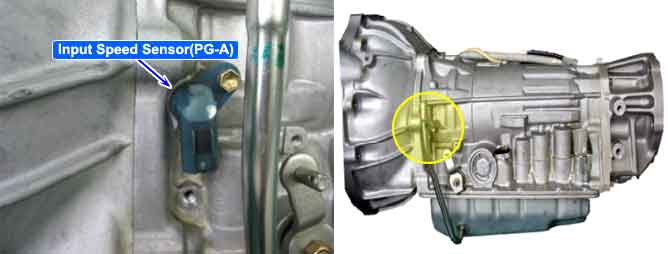

The input(turbine) speed sensor outputs waveform signals according to the revolutions of the input shaft ,installed in front of End clutch retainer,of the transmission. The TCM determines the input shaft speed by calculating the frequency of the pulses. This value is mainly used to control the optimum fluid pressure during shifting.
The TCM sets this code if an expected high rpm detected, The Fail-Safe function will be set by the TCM if this code is detected.
Item
Detecting Condition
Possible Cause
DTC Strategy
? Monitoring speed range
? Signal circuit is open or short.
? Sensor power circuit is open
? Sensor ground circuit is open
? Faulty INPUT SPEED SENSOR
? Faulty PCM/TCM
Enable Conditions
? Always
Threshold Value
? Input speed = 7000rpm
Diagnostic Time
? More than 10sec.
Fail Safe
-
Input shaft & Output shaft speed sensor
? Type : Magnetic Inductive Type
? sensor body and sensor connector have been unified as one.
