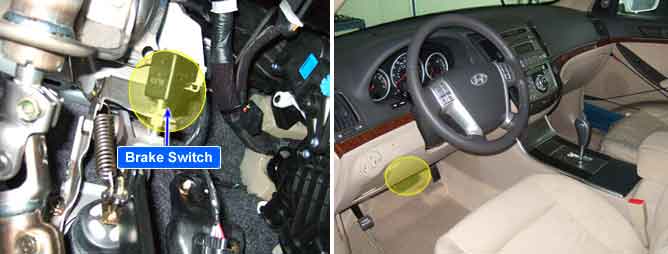

This switch is mounted on the pedal assembly and is used to indicate brake pedal status to the HECU. The switch is turned on when brake is depressed.
The brake light switch is a normally-open contact which runs to battery voltage when active (brake depressed).
When passive (brake not depressed), the cable is grounded via the brake light bulbs.
The brake light signal is a reference to judge driver's intention for braking.
The HECU checks open or short circuit of brake light switch for normal ESP control.
If an error is present, the warning lamp will illuminate.
Item
Detecting Condition
Possible cause
DTC Strategy
Open circuit monitoring
Open circuit in brake switch line
Faulty brake light switch
Faulty input stage in HECU
Enable Conditions
If both BLS(brake lamp switch) and BS(brake switch) have a same state and MCP (Master Cylinder Pressure) >20bar for 500ms.
Outside an ABS/ESP control, and after normal operation of MCP, If the pressure sensor signal is higher than 20bar and BLS is low for 3sec.
If the BLS/BS changed more than 40times and MCP>20bar for 5sec.
While Vehicle speed > 10km/h, TPS>5%, MCP<7bar, if BLS is high over 1min.
Fail Safe
Inhibit the ESP control and allow the ABS/EBD control.
The ESP warning lamp is activated.
Brake Light Switch
Voltage Range of "High"
Voltage Range of "Low"
7.0V ~ 16.0V
0V ~ 3.0V
