LIN technology is , a serial communication system which is used for communicating only one signal, developed to substitute CAN network, Normally used for multi signal communiction. It is only single wire to make LIN communiction in order to make simple network that is not important speed.

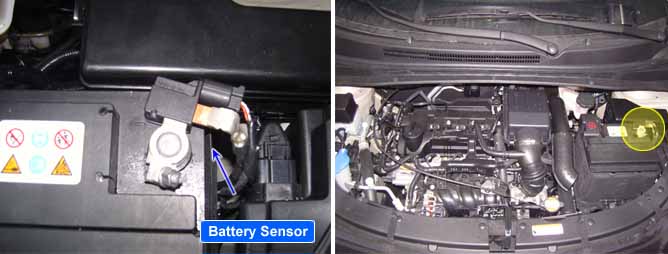

In case of ISG system, ECM receives battery infromation such as battery voltage, current and temperature etc.) through the LIN.
With the information received through the LIN, ECM decides alternator control, idle stop and auto start by receiving battery information.
ECM sets this code when there is an error in LIN communication line.
Item
Detecting Condition
Possible Cause
DTC Strategy
Signal Monitoring
Open or short in LIN communication line
Enable Conditions
-
Threshold Value
Framing error
Diagnostic Time
Continuous
MIL ON Condition
DTC only(Idle stop forbidden)
Fig.1) Signal waveforms of battery sensor
