P0139 O2 Sensor Circuit Slow Response(Bank 1 / Sensor 2)

AutoHex Online Help: Hyundai TUCSON/ix35(LM/EL) 2012

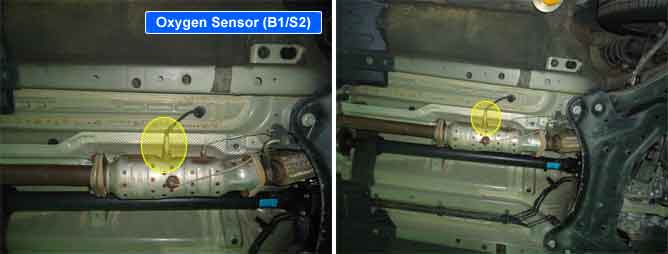

Component Location
General Description

The rear heated oxygen sensor is mounted on the rear side of the Catalytic Converter (warm-up catalytic converter) or in the rear exhaust pipe, which is able to detect catalyst efficiency. The rear heated oxygen sensor (HO2S) produces a voltage between 0V and 1V. This rear heated oxygen sensor is used to estimate the oxygen storage capability. If a catalyst has good conversion properties, the oxygen fluctuations are smoothed by the oxygen storage capacity of the catalyst. If the conversion provided by the catalyst is low due to aging, poisoning or misfiring, then the oxygen fluctuations are similar to signals from the front oxygen sensor.



DTC Description

The PCM monitors rich-lean switching time of rear heated oxygen sensor (HO2S) after fuel cut-off to validate dynamic behavior of rear heated oxygen sensor (HO2S). After detection of fuel cut-off engine operating state, the PCM measures rich-lean switching time of the rear heated oxygen sensor (HO2S) signal and compares it to the predetermined limit value. DTC P0139 is set when the switching time is bigger than the limit value.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

Slow response(Switching time check at entry in fuel cut off)

Leak in intake or exhaust system

Faulty fuel system.

Front and rear HO2S connections reversed.

Poor connection or damaged harness

HO2S contamination

Enable Conditions

Coolant temperature >73?(163?)

Downstream O2 sensor readiness detected

Downstream O2 sensor pre-heating phase finished

400?(752?)< Catalyst temperature model

0.6V< Downstream O2 sensor signal at entry into fuel cut-off

No relevant failure

11V < Battery voltage < 16V

Threshold Value

Average ratio between measured and maximum allowed rich to lean switching time entering fuel cut-off >1

Diagnostic Time

4 valid fuel cut-off phases

Mil On Condition

2 Drive Cycles

Diagnostic Circuit Diagram
Signal Waveform & Data

? Sector A : Signal Normal

? Sector B : Signal Fluctuation

? Sector C : Signal Recovery
