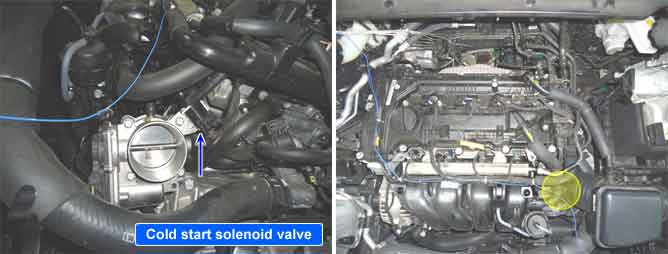

FFV(Flexible Fuel Vehicle) uses pure alcohol or mixed alcohol with gasoline. This system uses alcohol in normalcondition except cold starting. Gasoline is used only at cold starting. It is composed of auxiliary gasoline tank,motor and solenoid. ECU controls gasoline fuel pump relay, motor and solenoid at cold starting. Gasoline is supplied by controlled solenoid.
P0007 is set when the circuit of cold start solenoid valve is short to high.
Item
Detecting Condition
Possible Cause
MIL Condition
2 Driving Cycles - off
-
Rated voltage
DC 12V
Rated current
0.6 A below
Coil resistance
21 O ± 5% ( 23? , 73.4?)
Operating Temperature
? 20? ~ 130? ( -4? ~ 266?)
Working pressure
0.8 ~ 2.2 bar
20%
50%
100%
?9 ( 15.8 )
OFF
ON
0 ( 32 )
17 ( 62.6 )
