The CAN communication is one of various communication type and this has a parallel circuit in order to interchange various information among units, for example, PCU, ESP(or FTCS), TCCU. This type of communication can share a lot of information with units faster by using specified language. The ITM-ECU performs active control by sharing signals of engine RPM, APS, shift position, torque reduction.

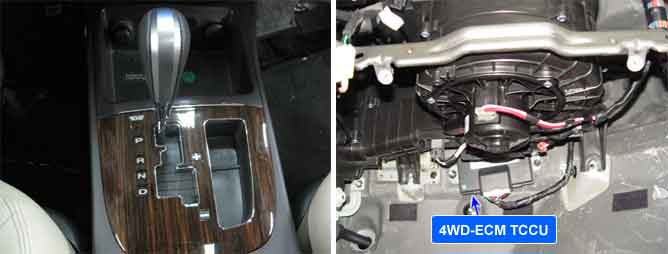

If the 4WD ECM gets an invalid signal of transaxle gear, it sets this DTC in order to protect its engine from damage.
Item
Detecting Condition
Possible Cause
DTC Strategy
Signal Monitoring
Fault of Transaxle gear-shift
Enable Conditions
IG KEY "ON" , ENGINE "ON "
Threshold Value
When an undefined transaxle gear is detected.
Diagnostic Time
1 sec.
MIL on condition
0.5 sec.
Fail Safe
Prohibiting ITM control
