The CVVT (Continuously Variable Valve Timing) system is installed to the chain sprocket of the intake camshaft. This system controls the intake camshaft to provide the optimal valve timing for every driving condition. The PCM controls the Oil Control Valve(OCV), based on the signals output from mass air flow, throttle position and engine coolant temperature. The CVVT controller regulates the intake camshaft angle using oil pressure through the OCV. As result, the relative position between the camshaft and the crankshaft becomes optimal, and the engine torque improves, fuel economy improves, exhaust emissions decrease under overall driving conditions.
PCM monitors timing misalignment while no active faults is present and fully warmed up engine oil at idle.
If the timing is misaligned PCM determines that a fault exists and a DTC is stored.
Item
Detecting Condition
Possible cause
DTC Strategy
? Determines if CAM target is aligned correctly to crank

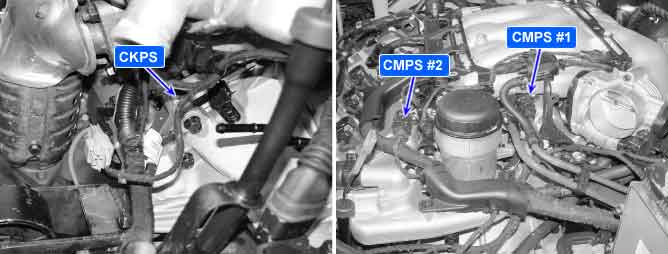

? Loosened CKPS
? Timing Misalignment
Enable Conditions
? No active faults
? Fully warmed up at idle
Threshold value
Case 1
? 1 teeth misalignment at 80 ?(176 ?) < Oil Temperature < 90 ?(194?)
Case 2
? 2 tooth misalignment at Lower than 80 ?(176 ?) or Higher than 90 ?(194?)
Diagnosis Time
? Continuous(Within 1min.)
MIL On Condition
? 2 driving Cycles
Engine Oil Temperature
Misalignment
80 ?(176 ?) < ENgine Oil Temperature < 90 ?(194?)
1 tooth
Less than 80 ?(176 ?) or Higher than 90 ?(194?)
2 teeth

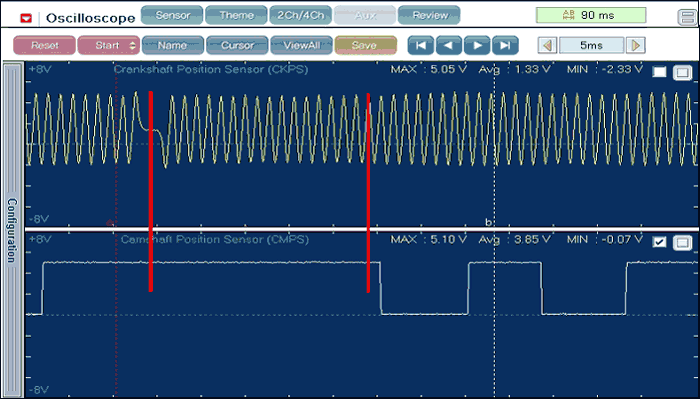

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle. If the 17th signal of the CKPS after missing tooth is aligned with the high signal of the CMPS at idle, PCM recognizes that Synchronization between CKPS and CMPS is completed.
