The ABS ECU(Electronic Control Unit) checks the battery voltage to determine, as a safety issue, whether the ABS system can operate normally or not.
The normal battery voltage range is essential for controlling the ABS system as instended.
The ABS ECU monitors the battery voltage and alternator output voltage by reading the value of voltage.
When the voltage is lower than the expected normal value, this code is set.
The ABS functions are prohibited and the EBD function is allowed on LOW VOLTAGE CONDITION, the ABS/EBD functions are prohibited on UNDER VOLTAGE CONDITION.
If the voltage recovers, to within normal operating ranges, then the controller returns to normal operations as well.
Item
Detecting Condition
Possible cause
DTC Strategy
? Battery Voltage Monitoring
? Poor connection in power supply circuit (IGN+)

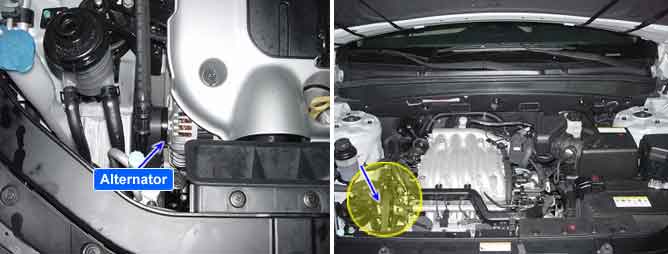

? Faulty Alternator
? Faulty HECU
Monitoring Period
? Continuous (Under voltage faults are only entered in the EEPROM if the vehicle speed is > 6km/h.)
Case1
(Low voltage)
Enable Conditions
? When Vign is lower than 9.3V outside ABS control.
? When Vign is lower than 9.2V inside ABS control.
- If IGN voltage is recovered to 9.6V, the system recovers to normal state.
- The monitored supply voltage is filtered and limited to a rise time of 4 volts per second.
Fail Safe
? The ABS functions are inhibited.
? The ABS warning lamps are activated.
Case2
(Under voltage)
? When Vign is lower than 7.7V.
- If IGN voltage is recovered to 7.8V, the system recovers to normal state.
? The ABS/EBD functions are inhibited.
? The ABS/EBD warning lamps are activated.
Normal Voltage Range
ENG "ON"
9.6V ~ 16.7V
