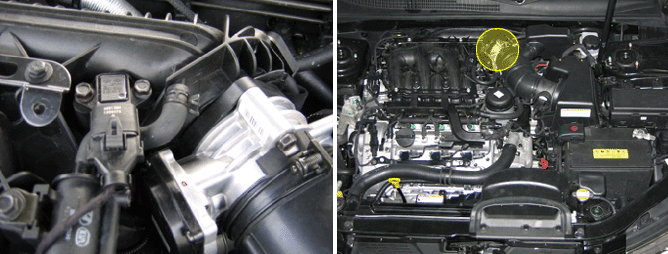

The Electronic Throttle Control(ETC) system is made of the components throttle body, Throttle Position Sensor(TPS)1&2 and Accelerator Position Sensor(APS) 1&2. The throttle body contains the actuator, the throttle plate and the throttle position sensor (potentiometer), which are integrated in one housing. The actuator consists of a DC motor with a two-stage gear. The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body. And it provides feedback to the PCM to control the throttle motor in order to control the throttle valve opening angle properly in response to the driving condition.
If PCM recognizes vehicle state as forced engine shutdown under detecting condition, it sets P2105 and then MIL(Malfunction Indication Lamp) turns on.
Item
Detecting Condition
Possible cause
DTC Strategy
? This code detects if the system is in Forced Engine Shutdown Mode
? Faulty APS+MAFS+MAPS+ETS
? Faulty PCM
Enable Conditions
? Ignition "ON"
Threshold value
? Forced Engine Shutdown Mode Active
Diagnosis Time
-
MIL On Condition
? 1 Driving Cycles
