The CVVT (Continuously Variable Valve Timing) system is installed to the chain sprocket of the exhaust camshaft. There is no variation in valve timing of the exhaust cam because the exhaust camshaft is driven by the timing belt. The timing of the intake cam is varied by the relative operation the CVVT vane to the housing. The CVVT controller regulates the intake camshaft angle using oil pressure through the OCV(Oil Control Valve). As result, the relative position between the camshaft and the crankshaft becomes optimal, and the engine torque improves, fuel economy improves, exhaust emissions decrease by changing the valve open/close timing of the intake camshaft.
The deviation of the camshaft position from the target point is evaluated during stable driving condition. The ECM accumulates this deviation for a certain period and sets DTC P0011 when the accumulated deviation is too high. The target camshaft position is predetermineded value depending on engine speed and throttle angle in the ECM.
Item
Detecting Condition
Possible Cause
DTC Strategy
Case1
? Deviation check between actual CAM position and CAM setpoint position in case of changing setpoint (slow response of actuator)
? Oil leak
? Oil Control Valve
? CVVT Assembly
Case2
? Deviation check between actual CAM position and CAM setpoint position (steady deviation)
Enable Conditions
? CVVT control active
? Camshaft setpoint moving by more than 12°CRK within less than 0.70 sec.
? Camshaft setpoint moved more than 5 times since engine start
? 11V < Battery voltage<16V
? 600 to 1500< Engine speed(RPM) < 5000
? No relevant failure
? 20°C(68°F) < Engine oil temp. < 110°C(230°F)
? Camshaft setpoint not close to full retard position(Camshaft position setpoint - Actual position > 5 °CRK)
? 11V < Battery voltage < 16V
? 600 to 1500 < Engine speed(RPM) < 5000
Threshold Value
? CAM position movement < 2.5 °CRK within 0.7 sec. (with CAM setpoint moving by 12 °CRK)
? Integral of Camshaft position actual value - Camshaft position setpoint > 90°CRK/sec.
Diagnostic Time
? 600 sec.
? 75 sec.

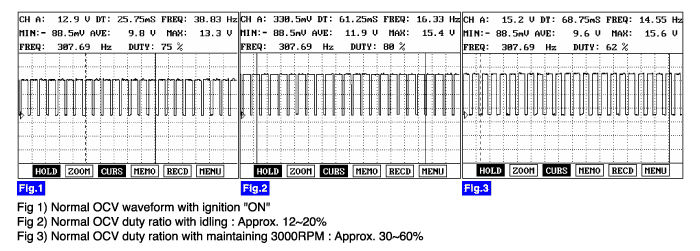

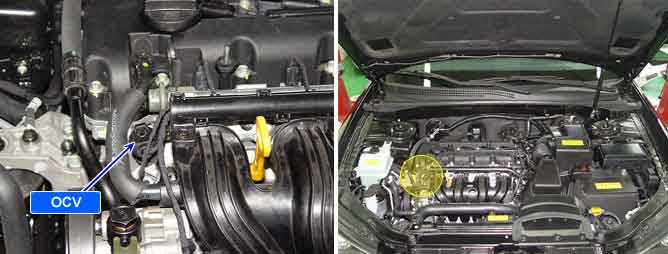

Intake OCV
Normal Parameter
Insulation Resistance (?)
Above 50 M?
Temp.(°C)
Temp.(°F)
Resistance(?)
0
32
6.2 ~ 7.4
60
140
8.0 ~ 9.2
10
50
6.5 ~ 7.7
70
158
8.3 ~ 9.5
20
68
6.8 ~ 8.0
80
176
8.6 ~ 9.8
30
86
7.1 ~ 8.3
90
194
8.9 ~ 10.1
40
104
7.4 ~ 8.6
100
212
9.2 ~ 10.4
122
7.7 ~ 8.9
